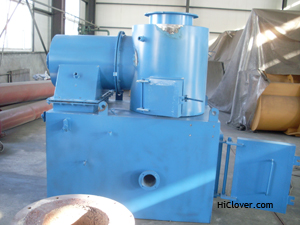

  Incinerator Model YD-100 is a middle scale incineration machine for many different usage: for a middle hospital sickbed below 500 units, for all small or big size family pets (like Alaskan Malamute Dog), for community Municipal Solid Waste Incineration, etc. The primary combustion chamber volume is 1200Liters (1.2m3) and use diesel oil or natural gas fuel burner original from Italy.

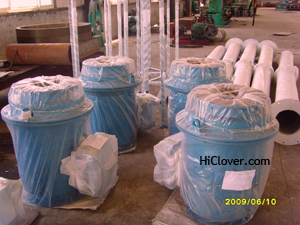

All our incinerator use stainless steel chimney, not steel.All our incinerator have two combustion chamber at least, not single chamber. All fuel burner from Italy made with famous brand, best quality.
300kgs per hour burning rate incinerator is well liked by market because this model can be medical waste incineration equipment for big hospital and also very good for other solid waste treatment with lowest cost, even if big size animals also can be feed into the combustion chamber. The primary combustion chamber volume is 2.4m3, big enough for common size animals. For shipping transport, YD-300 can be loaded into 40’feet full high container.
Big size combustion chamber up to 4.0m3 and Internal Dimensions is 257 x 147 x 108cm with feeding door opening 108 x 128cm. This model can be a small waste incineration factory with little amount of budget funds. If end customer use this for farm to burn animals like cow, horse or camel, contact with us now.

SPECIFICATIONS OF A PYROLYTIC MEDICAL WASTE INCINERATOR

An incinerator represents a complete solution to the problem of disposal of all hospital waste types. The liquid fuel is diesel. The incinerator should meet the environment standards.


N° Expected Technical specifications


2.01




The incinerator shall be fully self contained.


2.02

The incinerator plant shall incorporate a control panel for its operation. On the control panel we shall have a visual display of the chamber temperatures. This visual display must control and monitor the incinerator and his performance.


2.03

Capacity of destruction in weight shall be 60 Kg/h.
2.04

It should be able to operate not less than 10 hours/day
2.05

This incinerator must be able to destruct all combustible wastes produced by hospitals, private clinics, laboratories, institutes, etc…



Design Specification : Types A, B, C, D, and E of medical waste



2.06

“PYROLYTIC” combustion, by controlling the gasification of waste.


2.07

The incinerator must avoid the release of black smoke and fine dust, during the loadings.


2.08

It shall be able to reduce the volume of wastes by 98%.


2.09

It shall be able to hold emission in the second burn with gas residence of not less than 2 seconds.




2.10


The incineration should be completely free from visible smoke as well as offensive odours.


2.11

The primary ignition burner shall providing ignition of the waste to 850 °C and must switch off to conserve fuel.


2.12

The primary combustion chamber shall be constructed from heavy steel plate and the unit is internally lined with a complete layer of hote face refractory and high efficiency insulation.


2.13

The Internal diameter of the Chimney at least: Ø 400 and its height: 8 m


2.14

The Volume of the combustion chamber at least: 1.200 L


2.15

The Dimension of the door for loading in cm at least: 70x70.


2.16

Burner operation should be Automatic On/Off

Fuel : diesel
2.17

Manufacturer to provide necessary information for the best of the installation


2.18

The control panel shall have all appropriate audible and visual alarms to ensure safe operation.




2.19


This incinerator with “PYROLYTIC” combustion must have:

A combustion chamber of waste:

Perfectly tight door for the manual loading of waste. The loading should be Manual, Batch Load
A burner of lighting which the use is limited to the ignition of waste.
Frontage of loading with door seals gone up on hinges, wheel of screw plug, flexible joint, and stuffing insulating out of refractory.
The insulation of the combustion chamber should be composed of refractory bricks, having a high content of aluminium and insulates bricks in order to assure a minimum temperature on the outside sheet metal.
Composition of the refractory;



Refractory concrete :

. Thickness : ≥100 mm

. Nature: 42% of Al203

Insulate in fibrous panels :

Thickness: ≥75 mm

Nature: Calcium silicate.

Burner of lighting of waste, with fuel, standard mono-bloc casting guiding plunging flame, lighting and safety of electronic ignition, permanent ventilation, electromagnetic sluice gate of regulation and isolating valve.

Plate of combustion in Carborundum, avoiding the fixing of glass and slags


2.20


A chamber of post combustion of gases

A burner of combustion of gases,
A device of injection of air allowing a total recombustion of gases,
A device of air inlet of cooling of waste gases,
A sheath of evacuation of the gases burnt.
Carcass in strong sheet steel with support of connection.
Composition of the refractory;
Refractory concrete :
Thickness : ≥150 mm
Nature: 65% of Al203
Insulate in fibrous panel :
Thickness: ≥85 mm
Nature: Calcium
Burner with fuel, mono-bloc casting guiding type with horizontal flame, lighting and safety of electronic ignition, permanent ventilation, electromagnetic sluice gate of regulation and isolating valve.
A secondary injection of air to ensure perfect oxygen content.


2.21

A control box ensuring the complete cycle of combustion.
2.22

Fan:

Electro-ventilator distributing the secondary air, the regulation of the air flow being carried out by valves and following the control of the automatic cycle.

Controls and regulations:

Control box watertight to dust, including:



A switch circuit breaker for each engine (ventilators and burners).

A timer with adjustable temporization for the regulation of each burner.

A regulator with digital watching for the temperature of combustion.

A regulator with digital watching for the temperature of post combustion.

Electric box


2.23

The secondary combustion chamber must destroy the contaminant product and must resist to high temperature(1100 °C)


2.24 Process Filtering system: Scruber to be mentionned as optional
2.25 Emission Standards Compliance: BS 3316 or équivalent standard
2.26

Capacity to treat Plastic: Not less than 40% by weight
2.27 CE Manufacturing Compliance: BS EN 746-2-1997
