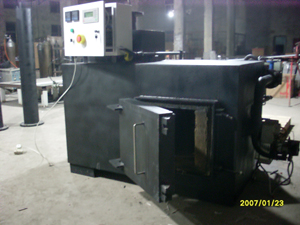

TS model PLC incinerator is latest
design for waste treatment, include medical waste, animal cremation and
other solid waste. This equipment quality structural for kinds of site,
like hospital, environmental department, animal cremation agencies, etc.
CLOVER Incinerator supply updated models with dual combustion chamber
and smoke filter chamber with refractory lines, and the combustion
chamber temperature up to 1200 deg C.
| |
|
Items/Model |
TS10(PLC) |
TS20(PLC) |
TS30(PLC) |
TS50(PLC) |
TS100(PLC) |
|
Burn Rate |
10 kg/hour |
20 kg/hour |
30 kg/hour |
50 kg/hour |
100 kg/hour |
|
Feed Capacity |
20kg |
40kg |
60kg |
100kg |
200 kg |
|

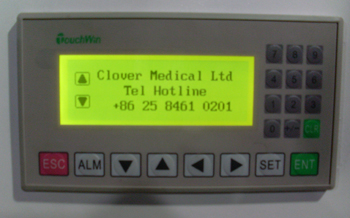

Control Mode |
PLC |
PLC |
PLC |
PLC |
PLC |
|
Combustion Chamber |
100L |
210L |
330L |
560L |
1200L |
|
Internal Dimensions |
50x50x40cm |
65x65x50cm |
75x75x60cm |
100x80x70cm |
120x100x100cm |
|
Secondary Chamber |
50L |
110L |
180L |
280L |
600L |
|
Smoke Filter Chamber |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Feed Mode |
Manual |
Manual |
Manual |
Manual |
Manual |
|
Voltage |
220V |
220V |
220V |
220V |
220V |
|
Power |
0.5Kw |
0.5Kw |
0.5Kw |
0.7Kw |
0.7Kw |
|
Oil Consumption (kg/hour) |
5.4--12.6 |
7.8--16.3 |
10.2--20 |
12.1--24 |
14--28 |
|
Gas Consumption (m3/hour) |
6.2--11.4 |
8--15.7 |
9.8--20 |
9.9--26.1 |
10--32.2 |
|
Temperature Monitor |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Temperature Protection |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Oil Tank |
100L |
100L |
100L |
100L |
200L |
|
Feed Door |
30x30cm |
45x40cm |
55x50cm |
70x55cm |
80x60cm |
|
Chimney |
3Meter |
3Meter |
5Meter |
5Meter |
10Meter |
|
Chimney Type |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
|
1st. Chamber Temperature |
800¡æ--1000¡æ |
800¡æ--1000¡æ |
800¡æ--1000¡æ |
800¡æ--1000¡æ |
800¡æ--1000¡æ |
|
2nd. Chamber Temperature |
1000¡æ-1200¡æ |
1000¡æ-1200¡æ |
1000¡æ-1200¡æ |
1000¡æ-1200¡æ |
1000¡æ-1200¡æ |
|
Residency Time |
2.0 Sec. |
2.0 Sec. |
2.0 Sec. |
2.0 Sec. |
2.0 Sec. |
|
Gross Weight |
1500kg |
2200kg |
3000kg |
4500kg |
6000kg |
|
External Dimensions |
140x90x120cm |
160x110x130cm |
175x120x140cm |
230x130x155cm |
260x150x180cm |
¡¡ |
|
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡ |
|
