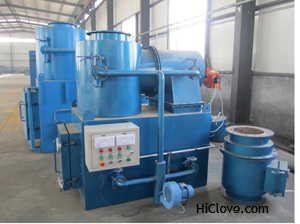

Incinerator Model YD-100 is a middle
scale incineration machine for many different usage: for a middle
hospital sickbed below 500 units, for all small or big size family pets
(like Alaskan Malamute Dog), for community Municipal Solid Waste
Incineration, etc. The primary combustion chamber volume is 1200Liters
(1.2m3) and use diesel oil or natural gas fuel burner original from
Italy.
All our incinerator use stainless steel chimney, not steel.All our
incinerator have two combustion chamber at least, not single chamber.
All fuel burner from Italy made with famous brand, best quality.
300kgs per hour burning rate incinerator is well liked by market because
this model can be medical waste incineration equipment for big hospital
and also very good for other solid waste treatment with lowest cost,
even if big size animals also can be feed into the combustion chamber.
The primary combustion chamber volume is 2.4m3, big enough for common
size animals. For shipping transport, YD-300 can be loaded into 40’feet
full high container.
Big size combustion chamber up to 4.0m3 and Internal Dimensions is 257 x
147 x 108cm with feeding door opening 108 x 128cm. This model can be a
small waste incineration factory with little amount of budget funds. If
end customer use this for farm to burn animals like cow, horse or camel,
contact with us now.
| Model | YD-30 | |||
| Burning Rate | 30 kgs/hour | |||
| Feed Capacity | 60 kgs | |||
| Paimary Combustion Chamber | 360 Liters | |||
| Secondary Combustion Chamber | 200 Liters | |||
| Mix Combustion Chamber | Yes | |||
| Smoke Filter Chamber | Yes | |||
| Feed Mode | Manual | |||
| Voltage | 220V | |||
| Power | 0.59Kw | |||
| Fuel Type | Diesel Oil/ Natural Gas/LPG | |||
| Burner | Italy Original | |||
| Oil Consumption (Diesel Oil) | 10.2--19.8 kg/hour | |||
| Gas Consumption (Natural Gas) | 9.8--20 m3/hour | |||
| Internal Dimensions | 100 x 60 x 60cm (paimary chamber) | |||
| External Dimensions | 145 x 90 x 260cm (without chimney) | |||
| Temperature Monitor | Yes | |||
| Oil Tank Capacity(if oil fuel) | 200 Liters | |||
| Door Opening | 48 x 60cm | |||
| Chimney Length | 5.0 Meters | |||
| Chimney Type | Stainless Steel | |||
| Equipment Gross Weight | 2300 kgs | |||
| Operation Technical Specifications | ||||
| Paimary Chamber Temperature | 800℃--1000℃ | |||
| Secondary Chamber Temperature | 1000℃-1200℃ | |||
| Residency Time | 2.0 Sec. | |||
| Burning Efficiency | ＞98% | |||
| Waste Lower Calorific Power | 3000Kcal | |||
INCINERATOR
For incineration of Laboratory wastes materials
Features
- Smoke and smell free
- High Temperature , refractory lining with excellent heat retention
- Quick heat up time
- Must have a secondary chamber
- Constant run fan
- Temperature monitoring
- Thermostat Control
Technical Specifications
- Capacity : approx. 0.20 m3
- Fuel consumption: 5 litres /hour Diesel Oil
- Min Operating Temp: 900 oC
- Max Operating Temp: 1350 oC
- Residence Time: 2 sec
- Burning rate: 35kg/hr minimum
Accessories
Standard accessories required
Consumables and Spares
Supplied with spares and consumables to carry out at least 1000 tests
Installation and Commission
Installation and commissioning to be done by vendor
Training
On-site training of service technicians and operators (Analysts) required for at least 2 days
Operation and service manuals
Both required in English
Nearest Service Centre
Required
Warranty
12 months warranty from date of commissioning
