Incinerator Model YD-100 is a middle
scale incineration machine for many different usage: for a middle
hospital sickbed below 500 units, for all small or big size family pets
(like Alaskan Malamute Dog), for community Municipal Solid Waste
Incineration, etc. The primary combustion chamber volume is 1200Liters
(1.2m3) and use diesel oil or natural gas fuel burner original from
Italy.
All our incinerator use stainless steel chimney, not steel.All our
incinerator have two combustion chamber at least, not single chamber.
All fuel burner from Italy made with famous brand, best quality.
300kgs per hour burning rate incinerator is well liked by market because
this model can be medical waste incineration equipment for big hospital
and also very good for other solid waste treatment with lowest cost,
even if big size animals also can be feed into the combustion chamber.
The primary combustion chamber volume is 2.4m3, big enough for common
size animals. For shipping transport, YD-300 can be loaded into 40’feet
full high container.

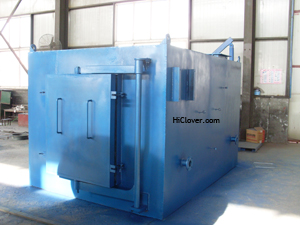

Big size combustion chamber up to 4.0m3 and Internal Dimensions is 257 x

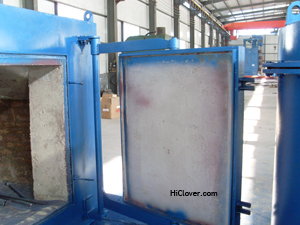

147 x 108cm with feeding door opening 108 x 128cm. This model can be a
small waste incineration factory with little amount of budget funds. If
end customer use this for farm to burn animals like cow, horse or camel,
contact with us now.
| Model | YD-500 | |||
| Burning Rate | 500 kgs/hour | |||
| Feed Capacity | 800 kgs | |||
| Primary Combustion Chamber | 4000 Liters | |||
| Secondary Combustion Chamber | 1500 Liters | |||
| Mix Combustion Chamber | Yes | |||
| Smoke Filter Chamber | Yes | |||
| Feed Mode | Manual | |||
| Voltage | 220V/380V | |||
| Power | 2.24Kw | |||
| Fuel Type | Diesel Oil/ Natural Gas/LPG | |||
| Burner | Italy Original | |||
| Oil Consumption (Diesel Oil) | 31--59.1 kg/hour | |||
| Gas Consumption (Natural Gas) | 19.2--64.2 m3/hour | |||
| Internal Dimensions | 257 x 147 x 108cm (primary chamber) | |||
| External Dimensions | 320 x 220 x 460cm (without chimney) | |||
| Temperature Monitor | Yes | |||
| Oil Tank Capacity(if oil fuel) | 500 Liters | |||
| Door Opening | 108 x 128cm | |||
| Chimney Length | 14.0 Meters | |||
| Chimney Type | Stainless Steel | |||
| Equipment Gross Weight | 13000 kgs | |||
| Operation Technical Specifications | ||||
| Paimary Chamber Temperature | 800℃--1000℃ | |||
| Secondary Chamber Temperature | 1000℃-1200℃ | |||
| Residency Time | 2.0 Sec. | |||
| Burning Efficiency | ＞98% | |||
| Waste Lower Calorific Power | 3000Kcal | |||
N° DESIGNATION SPECIFICATIONS
Electric incinerators, with the construction of a local implementation
of fire safety and a fuel tank capacity of at least 1000 liters
"Semi Electric / Destruction of all waste generated by hospitals
(laboratories, clinics etc.) / Combustion type pyrolytic / automatic
operation, do not monitor requiring / Treatment System adequacy of gas
for a complete treatment of pollutants in the gas / destructive capacity
of 60 kg / h at least / Automatic Door refractory lined / Possibility of
manual loading / disposal of waste to a maximum moisture content of 85%
/ combustion temperature greater than or equal to 900 ° C /
post-combustion temperature greater than or equal to 1100 ° C / chimney
height greater than or equal to 10 m
Combustion
Sheet steel or any suitable material / Front loading door sealed with
refractory lining / padding that meet mechanical, thermal and corrosive
liquid wastes and molten glass with thermal insulation / Sol combustion
avoiding the adhesion of glass and slag
Post Combustion Chamber
Sheet steel or any suitable material / padding that meet mechanical,
thermal and corrosive / Thermal Insulation
/ Secondary air injection ensures perfect oxygen content / delivery with
all the accessories required: squeegee metal ash tray etc ... ... /
Power Supply: 220 Volts
/ The incinerator must comply with air emission standards under Benin or
if the latest standards set by the EEC in terms of pollutants and their
content. /
Installation must be done in a room with necessary breakdowns led with
high and low water and electricity to a maximum radius of 200 m and all
electrical and water required for the proper functioning of the
incinerator. /
Tank for fuel capacity of 500 liters with all safety accessories and
installation / Fire Safety.
"
