Incinerator Model YD-100 is a middle
scale incineration machine for many different usage: for a middle
hospital sickbed below 500 units, for all small or big size family pets
(like Alaskan Malamute Dog), for community Municipal Solid Waste
Incineration, etc. The primary combustion chamber volume is 1200Liters
(1.2m3) and use diesel oil or natural gas fuel burner original from
Italy.
All our incinerator use stainless steel chimney, not steel.All our
incinerator have two combustion chamber at least, not single chamber.
All fuel burner from Italy made with famous brand, best quality.

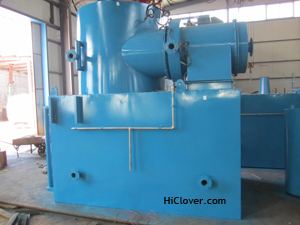

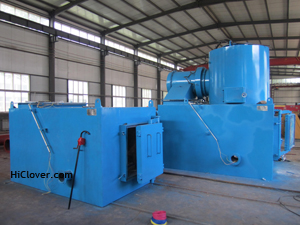

300kgs per hour burning rate incinerator is well liked by market because
this model can be medical waste incineration equipment for big hospital
and also very good for other solid waste treatment with lowest cost,
even if big size animals also can be feed into the combustion chamber.
The primary combustion chamber volume is 2.4m3, big enough for common
size animals. For shipping transport, YD-300 can be loaded into 40’feet
full high container.
Big size combustion chamber up to 4.0m3 and Internal Dimensions is 257 x
147 x 108cm with feeding door opening 108 x 128cm. This model can be a
small waste incineration factory with little amount of budget funds. If
end customer use this for farm to burn animals like cow, horse or camel,
contact with us now.

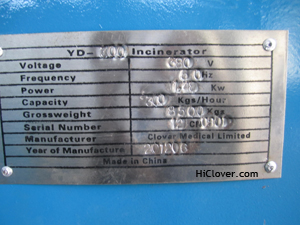

| Model | YD-300 | |||
| Burning Rate | 300 kgs/hour | |||
| Feed Capacity | 500 kgs | |||
| Primary Combustion Chamber | 2400 Liters | |||
| Secondary Combustion Chamber | 1200 Liters | |||
| Mix Combustion Chamber | Yes | |||
| Smoke Filter Chamber | Yes | |||
| Feed Mode | Manual | |||
| Voltage | 220V/380V | |||
| Power | 1.48Kw | |||
| Fuel Type | Diesel Oil/ Natural Gas/LPG | |||
| Burner | Italy Original | |||
| Oil Consumption (Diesel Oil) | 26--48.1 kg/hour | |||
| Gas Consumption (Natural Gas) | 16.1--48.8 m3/hour | |||
| Internal Dimensions | 220 x 110 x 100cm (primary chamber) | |||
| External Dimensions | 260 x 220 x 420cm (without chimney) | |||
| Temperature Monitor | Yes | |||
| Oil Tank Capacity(if oil fuel) | 500 Liters | |||
| Door Opening | 90 x 110cm | |||
| Chimney Length | 10.0 Meters | |||
| Chimney Type | Stainless Steel | |||
| Equipment Gross Weight | 8300 kgs | |||
| Operation Technical Specifications | ||||
| Paimary Chamber Temperature | 800℃--1000℃ | |||
| Secondary Chamber Temperature | 1000℃-1200℃ | |||
| Residency Time | 2.0 Sec. | |||
| Burning Efficiency | ＞98% | |||
| Waste Lower Calorific Power | 3000Kcal | |||
General Specifications 6mm plate steel
sheel construction
11cm 1400 ° C refractory liner
temperature controlled Burners
secondary combustion burners
interlock switch on load doors
separete ash door
one secondary residence @ 1000 ° C
400 ° C silicone based paint finish
alloy temperature sensor
factory wired and tested
Capacity 20kg/hr
primary Chamber 1607 L
Hearth area 1:36 aq.m
Secondary Chamber 694L
Primary burner (oil) 420.00btu
Secondary burner (oil) 900,000 btu
Secondary combustion 1/6 hp
Exhaust stack 46cm x 6m
Electrical service 220/50
System weight 5.700 kg
Dimension "D" 152cm
Doad port height and 60x60cm
Ash port height and 36x36cm
