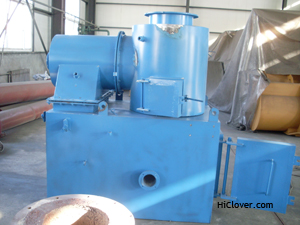

Model YD-50 Incinerator





Equipment Technical Specifications

Model

YD-50

Feed Capacity

150-350 kgs per feed

Burning Rate

50 kgs per hour

Burning Time per Feed

3-5 hours

Voltage

380V

Power

0.7Kw

Fuel

Natural Gas or Diesel oil

Burner

Italy Burner

Feed Mode

Manual

Fuel consumption (Oil)

8.0-20.0 Kgs/Hour

Fuel consumption (Gas)

10.0-20.0m3/Hour

External Dimensions

200 x 160 x 230cm (mainbody)

Internal Dimensions

120 x 90 x 85cm(Primary Chamber)

Waste combustion chamber

900Liters

Post Combustion Chamber

300Liters

Oil Tank Capacity

300 Liters

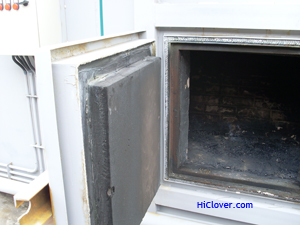

Door Opening

62 x 80cm

Chimney

5.0M

Gross Weight

4000kgs

Chamber Material

Firebrick ,Refractory Concrete

Max. Heat Value

200,000Kcal/Hr.

Operation Technical Specifications

Solid Chamber temperature

8000C -10000C

Gas Chamber temperature

10000C -12000C

Chamber Anti-Rate

14500C

Residency time

2.0 Sec.

Burning efficiency

98%

Waste Lower Calorific Power

3000Kcal
