Small Incinerators

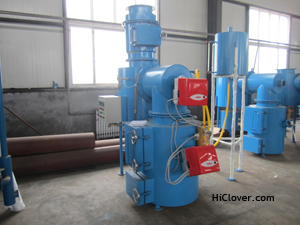

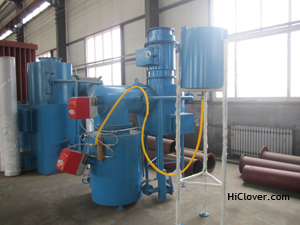

Clover offer small scale incinerators, standard models are YD-15C, YD-20C, YD-30C and also can offer smaller model, model YD-5C and YD-10C for market.
 |
 |
 |
|
Equipment Technical Specifications |
|||
|
Model |
YD-15C |
YD-20C | YD-30C |
|
Feed Capacity |
40-80 kgs per feed |
40-80 kgs per feed |
50-100 kgs per feed |
|
Burning Rate |
15 kgs per hour |
20 Kgs per hour | 30 Kgs per hour |
|
Voltage |
220V |
||
|
Power |
0.50Kw |
0.50Kw | 0.59Kw |
|
Fuel |
Natural Gas or Diesel oil |
||
|
Burner |
Italy Burner |
||
|
Feed Mode |
Manual |
||
|
Fuel consumption (Oil) |
4.4-9.4 Kgs/Hour |
5.4-12.6 Kgs/Hour | 10.2-20.0 Kgs/Hour |
|
Fuel consumption (Gas) |
5.3-11.2 m3/Hour |
6.5-15.0 m3/Hour | 12.2-20.0 m3/Hour |
|
Waste combustion chamber |
200Liters |
200Liters |
250Liters |
|
Post Combustion Chamber |
140Liters |
140Liters |
140Liters |
|
Door Opening |
38 x 48cm |
||
|
Chimney |
5.0M |
||
|
Gross Weight |
1200kgs |
1200kgs | 1800kgs |
|
Chamber Material |
Refractory Concrete |
||
|
Max. Heat Value |
94,000Kcal/Hr. |
126,000Kcal/Hr. | 200,000Kcal/Hr. |
|
Operation Technical Specifications |
|||
|
Solid Chamber temperature |
800 0C -1000 0C |
||
|
Gas Chamber temperature |
1000 0C -1200 0C |
||
Chamber Anti-Rate
|
13500C |
||
Residency time
|
2.0 Sec. |
||
|
Burning efficiency |
＞98% |
||
