Model

YZ-50

Capacity(Kgs/Hour)

About 50

Applicable Sick Bed(Beds)

500

Voltage(V)

220

Power(Kw)

1.3

Oil

Diesel Oil(light Diesel oil beneath 10#)

Burner

Baltur, Italy Original

Feed Mode

Manual

Prohibit Waste

Incombustible and explosive materials not allowed in

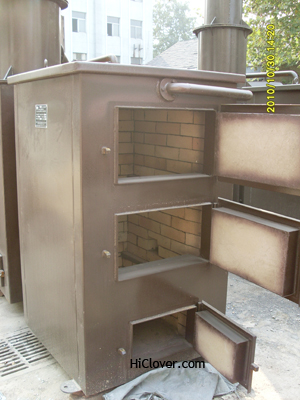

Chamber thickness(Firebrick) (mm)

135

Steel Thickness(mm)

4

Gross Weight(Kgs)

2400

Package Material

Wooden Carton

Package Size(mm)

2200(L) x 1500(W) x 2550(H)

Chimney

Length: 6.4M, Diameter:250mm

Oil Tank Capacity(Kgs)

63.75

Fuel consumption:

Primary Burner: 2.7-6.3Kgs/Hour

Secondary Burner: 2.7-6.3Kgs/Hour

Solid combustion chamber((Primary& Secondary, M3)

0.45

Gas Combustion Chamber(M3)

0.13

Solid Chamber temperature(⁰C)

800-1000

Gas Chamber temperature(⁰C)

1000-1200

Burning efficiency

＞98%
