Small Incinerators
Economical Incinerators
Medical Incinerators
﹛
﹛
﹛
﹛
﹛
﹛

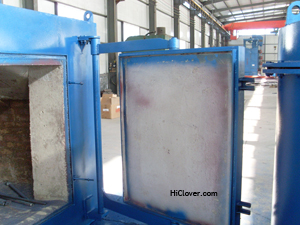

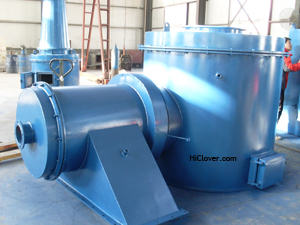

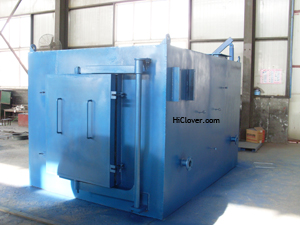

Model YD-500 Incinerator
 |
 |
 |
Big size combustion chamber up to 4.0m3 and Internal Dimensions is 257 x 147 x 108cm with feeding door opening 108 x 128cm. This model can be a small waste incineration factory with little amount of budget funds. If end customer use this for farm to burn animals like cow, horse or camel, contact with us now.
|
Equipment Technical Specifications |
|
|
Model |
YD-500 |
|
Feed Capacity |
1000-2000 kgs per feed |
|
Burning Rate |
500 kgs per hour |
|
Burning Time per Feed |
2-4 hours |
|
Voltage |
380V |
|
Power |
2.24Kw |
|
Fuel |
Natural Gas or Diesel oil |
|
Burner |
Italy Burner |
|
Feed Mode |
Manual |
|
Fuel consumption (Oil) |
22.0-40.0 Kgs/Hour |
|
Fuel consumption (Gas) |
20.0-45.0m3/Hour |
|
External Dimensions |
320 x 220 x 460cm (mainbody) |
|
Internal Dimensions |
257 x 147 x 108cm(Primary Chamber) |
|
Waste combustion chamber |
4000Liters |
|
Post Combustion Chamber |
1500Liters |
|
Oil Tank Capacity |
500 Liters |
|
Door Opening |
108 x 128cm |
|
Chimney |
14.0M |
|
Gross Weight |
13000kgs |
|
Chamber Material |
Firebrick ,Refractory Concrete |
|
Max. Heat Value |
400,000Kcal/Hr. |
|
Operation Technical Specifications |
|
|
Solid Chamber temperature |
8000C -10000C |
|
Gas Chamber temperature |
10000C -12000C |
Chamber Anti-Rate
|
14500C |
Residency time
|
2.0 Sec. |
|
Burning efficiency |
ˇ98% |
|
Waste Lower Calorific Power |
3000Kcal |
﹛
﹛
﹛
﹛
﹛
﹛
﹛
﹛
