Small Incinerators
Economical Incinerators
Medical Incinerators

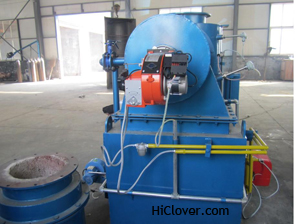

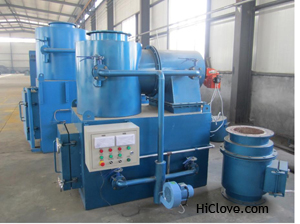

Model YD-30 Incinerator
 |
 |
 |
Regular model incinerator for market with
burning rate from 10kgs to 500kgs per hour and we always proposal
customer send us their require details, like waste material, local site
fuel and power supply, incinerator operation time, etc, so we can
proposal right model or custom made with different structure or
dimensions.
Incinerator Model YD-100 is a middle scale incineration machine for many
different usage: for a middle hospital sickbed below 500 units, for all
small or big size family pets (like Alaskan Malamute Dog), for community
Municipal Solid Waste Incineration, etc. The primary combustion chamber
volume is 1200Liters (1.2m3) and use diesel oil or natural gas fuel
burner original from Italy.
|
Equipment Technical Specifications |
|
|
Model |
YD-30 |
|
Feed Capacity |
60-120 kgs per feed |
|
Burning Rate |
30 kgs per hour |
|
Burning Time per Feed |
2-4 hours |
|
Voltage |
220V |
|
Power |
0.59Kw |
|
Fuel |
Natural Gas or Diesel oil |
|
Burner |
Italy Burner |
|
Feed Mode |
Manual |
|
Fuel consumption (Oil) |
10.0-16.0 Kgs/Hour |
|
Fuel consumption (Gas) |
10.0-15.0m3/Hour |
|
External Dimensions |
145 x 90 x 175cm (mainbody) |
|
Internal Dimensions |
100 x 60 x 60cm(Primary Chamber) |
|
Waste combustion chamber |
360Liters |
|
Post Combustion Chamber |
200Liters |
|
Oil Tank Capacity |
200 Liters |
|
Door Opening |
48 x 60cm |
|
Chimney |
5.0M |
|
Gross Weight |
2300kgs |
|
Chamber Material |
Firebrick ,Refractory Concrete |
|
Max. Heat Value |
160,000Kcal/Hr. |
|
Operation Technical Specifications |
|
|
Solid Chamber temperature |
8000C -10000C |
|
Gas Chamber temperature |
10000C -12000C |
Chamber Anti-Rate
|
14500C |
Residency time
|
2.0 Sec. |
|
Burning efficiency |
＞98% |
|
Waste Lower Calorific Power |
3000Kcal |
