Small Incinerators
Economical Incinerators
Medical Incinerators

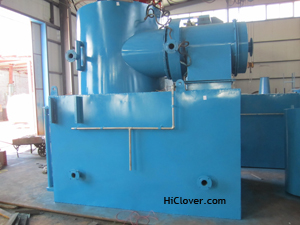

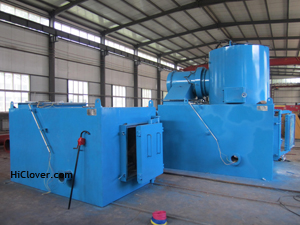

Model YD-300 Incinerator
 |
 |
 |
All our incinerator use stainless steel
chimney, not steel.All our incinerator have two combustion chamber at
least, not single chamber. All fuel burner from Italy made with famous
brand, best quality.
300kgs per hour burning rate incinerator is well liked by market because
this model can be medical waste incineration equipment for big hospital
and also very good for other solid waste treatment with lowest cost,
even if big size animals also can be feed into the combustion chamber.
The primary combustion chamber volume is 2.4m3, big enough for common
size animals. For shipping transport, YD-300 can be loaded into 40’feet
full high container.
|
Equipment Technical Specifications |
|
|
Model |
YD-300 |
|
Feed Capacity |
600-1200 kgs per feed |
|
Burning Rate |
300 kgs per hour |
|
Burning Time per Feed |
2-4 hours |
|
Voltage |
380V |
|
Power |
1.48Kw |
|
Fuel |
Natural Gas or Diesel oil |
|
Burner |
Italy Burner |
|
Feed Mode |
Manual |
|
Fuel consumption (Oil) |
14.0-34.0 Kgs/Hour |
|
Fuel consumption (Gas) |
13.0-38.0m3/Hour |
|
External Dimensions |
260 x 220 x 420cm (mainbody) |
|
Internal Dimensions |
220 x 110 x 100cm(Primary Chamber) |
|
Waste combustion chamber |
2400Liters |
|
Post Combustion Chamber |
1200Liters |
|
Oil Tank Capacity |
500 Liters |
|
Door Opening |
90 x 110cm |
|
Chimney |
10.0M |
|
Gross Weight |
8300kgs |
|
Chamber Material |
Firebrick ,Refractory Concrete |
|
Max. Heat Value |
340,000Kcal/Hr. |
|
Operation Technical Specifications |
|
|
Solid Chamber temperature |
8000C -10000C |
|
Gas Chamber temperature |
10000C -12000C |
Chamber Anti-Rate
|
14500C |
Residency time
|
2.0 Sec. |
|
Burning efficiency |
＞98% |
|
Waste Lower Calorific Power |
3000Kcal |
