Containerized Mobile Incinerators

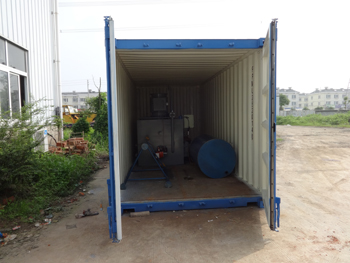

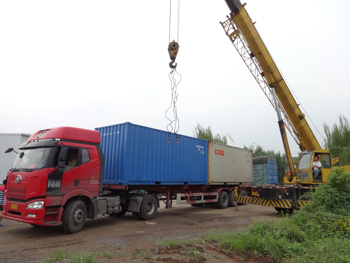

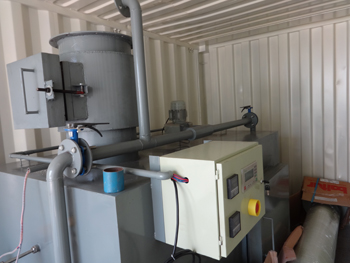

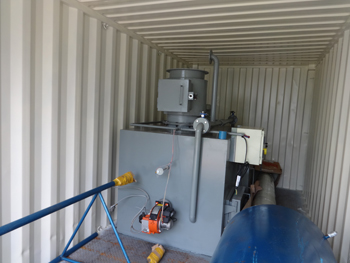

Containerized waste incinerator is our latest design for market. This incinerator is build in ISO container before leave factory. After customer received container, install the chimney and connect with electric power and setup oil tank, that’s all. Now, the burning capacity can be 30 kgs/50kgs/100kgs per hour for ISO 20’feet container. This moveable/mobile incinerator can be move by truck to any site by local customer.

This kind of incinerator is good choice for different end-customer site, Service personnel can move to there and service at local site. It is also best service type for family pet cremation service and other emergency status.

This kind of incinerator is good choice for different end-customer site, Service personnel can move to there and service at local site. It is also best service type for family pet cremation service and other emergency status.

- See more at: http://www.chinaclover.net/category/blog/page/2/#sthash.tZ3c3V6B.dpuf

Model	Container 50
Feed Capacity	Average 50 kgs per feed
Burning Rate	Average 30 kgs per hour
Burning Time per Feed	1-2 hours
Voltage	220V
Power	0.7Kw
Fuel	Diesel oil
Burner	Italy Burner
Feed Mode	Manual
Fuel consumption (Oil)	12.1-24.0 Kgs/Hour
Internal Dimensions	100x80x70cm (Primary Chamber)
External Dimensions	230 x 130 x 155cm (main body)
Waste combustion chamber	560Liters
Post Combustion Chamber	280Liters
Oil Tank Capacity	100 Liters
Door Opening	70 x 50cm
Chimney	5.0M
Gross Weight	4500kgs
Chamber Material	Firebrick ,Refractory Concrete
Max. Heat Value	240,000Kcal/Hr.
Operation Technical Specifications
Solid Chamber temperature	800⁰C -1000⁰C
Gas Chamber temperature	1000⁰C -1200⁰C
Chamber Anti-Rate	1450⁰C
Residency time	2.0 Sec.
Burning efficiency	＞98%
Waste Lower Calorific Power	3000Kcal
