Containerized Mobile Incinerator
Email: [email protected] Tel: +86-25-8461 0201
| ¡¡ |
 |
¡¡ |

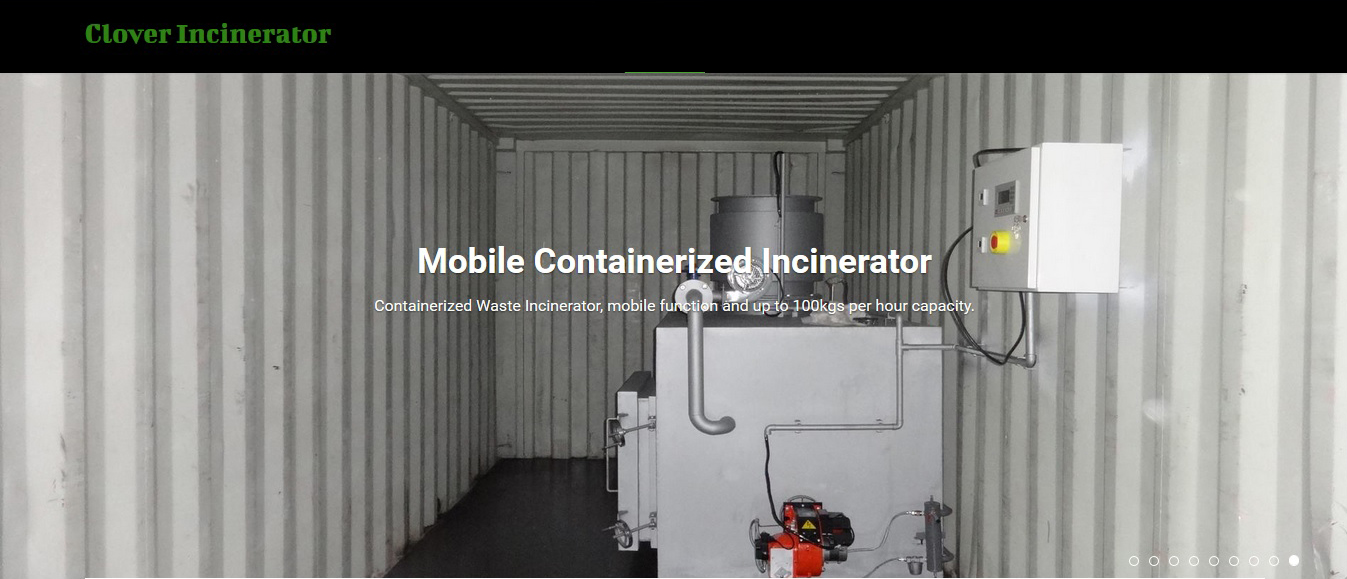

Mobile Containerized Incinerator,
moveable for truck, buring rate upto 100kgs per hour.
We design for end customer, we
dispatch for better services.
| Model |
CA50 |
| Feed Capacity |
Average 60 kgs per feed |
| Burning Rate |
Average 70 kgs per hour |
| Burning Time per Feed |
1 hour |
| Voltage |
220V |
| Power |
0.7Kw |
| Fuel |
Diesel oil |
| Burner |
Italy Burner |
| Feed Mode |
Manual |
| Fuel consumption (Oil) |
Average 18 Kgs/Hour |
| Internal Dimensions |
100x80x70cm (Primary Chamber) |
| External Dimensions |
230 x 130 x 155cm (main body) |
| Waste combustion chamber |
560Liters |
| Post Combustion Chamber |
280Liters |
| Oil Tank Capacity |
100 Liters |
| Door Opening |
70 x 50cm |
| Chimney |
5.0M |
| Gross Weight |
4500kgs |
| Chamber Material |
Firebrick ,Refractory Concrete |
| Max. Heat Value |
240,000Kcal/Hr. |
| Operation
Technical Specifications |
| Solid Chamber temperature |
8000C -10000C |
| Gas Chamber temperature |
10000C -12000C |
| Chamber Anti-Rate |
14500C |
| Residency time |
2.0 Sec. |
| Burning efficiency |
£¾98% |
| Waste Lower Calorific Power |
3000Kcal |
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡ |
|
