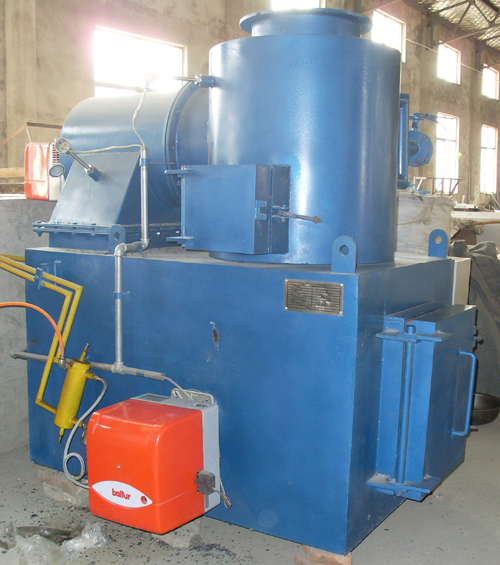

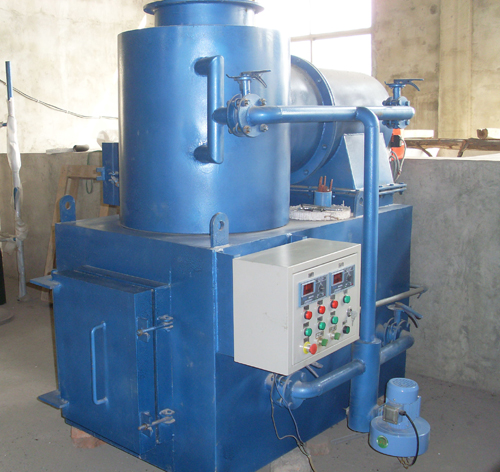

Medical Waste Incinerator
Treatment Capacity:30kgs per hour
Medical Waste Incinerator YD Model is
our classic product for market. All
series included burning capacity 10kgs
per hour, 30kgs per hour,50kgs per
hour,100kgs per hour,150kgs per
hour,300kgs per hour,500kgs per hour. Up
to now, all models sale to all over the
world and have good feedback from
end-customer. The YD Model medical
incinerator have multi-combustion
chamber and basic dry scrubber (smoke
filter chamber) with reasonable
project budget. For the cleaner emission
require, we accept custom made wet
scrubber for incinerator and this will
be also our next working by focusing on
emission technical.domestic incinerator
pictures, hospital incinerator system
¡¡
|
Model |
YD-30 |
|
Burning Rate |
30 kgs/hour |
|
Feed Capacity |
60 kgs |
|
Primary Combustion Chamber |
360 Liters |
|
Secondary Combustion Chamber |
200 Liters |
|
Mix Combustion Chamber |
Yes |
|
Smoke Filter Chamber |
Yes |
|
Feed Mode |
Manual |
|
Voltage |
220V |
|
Power |
0.59Kw |
|
Fuel Type |
Diesel Oil/ Natural Gas/LPG |
|
Burner |
Italy Original |
|
Oil Consumption (Diesel Oil) |
10.2--19.8 kg/hour |
|
Gas Consumption (Natural Gas) |
9.8--20 m3/hour |
|
Internal Dimensions |
100 x 60 x 60cm (primary chamber) |
|
External Dimensions |
145 x 90 x 260cm (without chimney) |
|
Temperature Monitor |
Yes |
|
Oil Tank Capacity(if oil fuel) |
200 Liters |
|
Door Opening |
48 x 60cm |
|
Chimney Length |
5.0 Meters |
|
Chimney Type |
Stainless Steel |
|
Equipment Gross Weight |
2300 kgs |
|
Operation Technical Specifications |
|
Primary Chamber Temperature |
800¡æ--1000¡æ |
|
Secondary Chamber Temperature |
1000¡æ-1200¡æ |
|
Residency Time |
2.0 Sec. |
|
Burning Efficiency |
£¾98% |
|
Waste Lower Calorific Power |
3000Kcal |
¡¡
TECHNICAL
SPECIFICATIONS: PYROLYTIC INCINERATOR
Parameter Compliance
Type of Waste To treat medical waste, categories A,B,C,D,E
Type of Incinerator Pyrolytic
Nominal Burn rate 50 t0 60 kg/ hr at 3500Kcal/Kg
Loading Manual, Batch Load
De Ashing Automatic or Manual batch de ashing
The incinerator must avoid the release of black smoke and fine dust during the
loading
Primary chamber capacity 2-3 m³
The insulation of the combustion chamber should be composed of refractory
bricks, having a higher content of aluminium and insulates,
The plate of combustion in carborundum avoiding the fixing of glass and slags
Hours of operation /Day >10 hrs
Max Operating Temperatures 1400 ¡ãC
Normal Operating Temperatures(Primary) >850 ¡ãC
Operating Temperature(Secondary) >1100 ¡ãC
It should have digital temperatures regulator( Temperatures regulator in digital
watch)
Carbon content of ashes <2%
The installation should be completely free from visible smoke as well as
offensive odours
Residence time in second chamber 2 second minimum
The internal diameter of the Chimney :Ø 400
Height of stack >8m
Burner operation Automatic On/Off
Fuel Diesel
Fuel consumption at raed capacity >7kg waste /ltr
Electricity consumption <2kW at rated capacity
Operating Voltage 220 ¨C 240V AC 50Hz
Spare parts Supply for 1 year quoted as option
Consumables Supply for 1 year of operation to be mentioned as option
Warranty Parts and service support: 1 year minimum post comissioning
Service support <72 hours
Emission standard Compliance BS3316 or equivqlent standard
Process filtering system Scruber to be mentioned as option
CE Manufacturing Compliance BS EN 746-2-1997
Design Specification Type A,B,C,D,and E of medical waste
Installation and Comissioning Included in condition of supply
Training in preventive and curative maintenance and use of the incinerator
Operator training inclusive in offer
Capacity to treat Plastic Not less than 40% by weight
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡ |
|
