Medical Waste Incinerator
Treatment Capacity:500kgs per hour

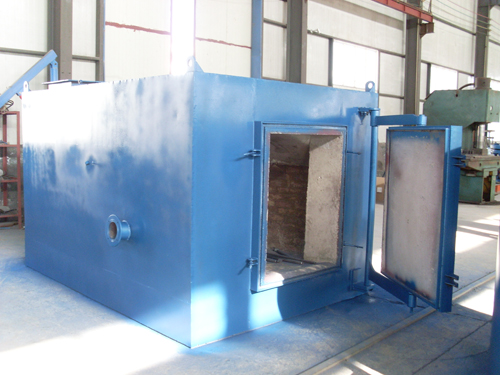

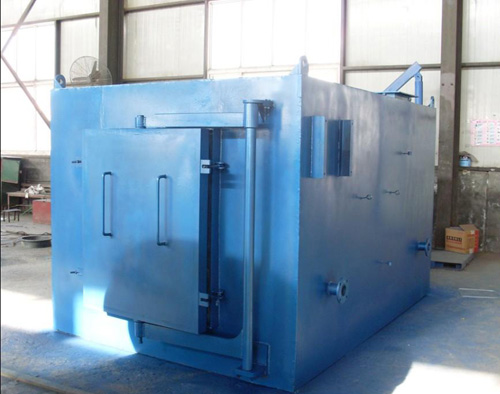

Big size
combustion chamber up to
4.0m3 and Internal Dimensions is 257
x 147 x 108cm with feeding door
opening
108 x 128cm. This model can be a small waste incineration factory with
little amount of budget funds. If end
customer use this for farm to burn animals
like cow, horse or camel, no problem!
hazardous waste, hotel incinerators
china, farm animal incinerators
Do you need
bigger
Internal Dimensions? contact with us, we make it for you.
|
Model |
YD-500 |
|
Burning Rate |
500 kgs/hour |
|
Feed Capacity |
800 kgs |
|
Primary Combustion Chamber |
4000 Liters |
|
Secondary Combustion Chamber |
1500 Liters |
|
Mix Combustion Chamber |
Yes |
|
Smoke Filter Chamber |
Yes |
|
Feed Mode |
Manual |
|
Voltage |
220V/380V |
|
Power |
2.24Kw |
|
Fuel Type |
Diesel Oil/ Natural Gas/LPG |
|
Burner |
Italy Original |
|
Oil Consumption (Diesel Oil) |
31--59.1 kg/hour |
|
Gas Consumption (Natural Gas) |
19.2--64.2 m3/hour |
|
Internal Dimensions |
257 x 147 x 108cm (primary chamber) |
|
External Dimensions |
320 x 220 x 460cm (without chimney) |
|
Temperature Monitor |
Yes |
|
Oil Tank Capacity(if oil fuel) |
500 Liters |
|
Door Opening |
108 x 128cm |
|
Chimney Length |
14.0 Meters |
|
Chimney Type |
Stainless Steel |
|
Equipment Gross Weight |
13000 kgs |
|
Operation Technical Specifications |
|
Primary Chamber Temperature |
800¡æ--1000¡æ |
|
Secondary Chamber Temperature |
1000¡æ-1200¡æ |
|
Residency Time |
2.0 Sec. |
|
Burning Efficiency |
£¾98% |
|
Waste Lower Calorific Power |
3000Kcal |
1. Multiple chamber
type, horizontal stationary cylindrical body;
2. Capacity of 15 kilograms per hour;
3. Diesel-Powered;
4. Burners should be monoblock type with built-in fan, motor, electronic
programmer, automatic ignition, fuel regulator, registration and security sensor
device for the absence of flame triggering solenoid valve mounted on the easel
supply;
5. The system should have ventilation for sweeping previous gases before
activating the fuel supply to the burner;
6. Equipped with main combustion chamber and a second chamber for reburning
designed to ensure complete combustion of the gases resulting from incomplete
combustion of inert gases in the chimney, within the standards recommended by
the World Health Organization;
7. Equipped with temperature controller to adjust the air of the combustion of
the waste, and fuel flow in the burners of the firing chamber and re-burning in
order to conserve power when reached the "stead state" of the combustion
process;
8. The control system must also be provided with an audible alarm in case of
decrease in temperature. The characteristic of local power is three-phase
220/127V - 60Hz.;
9. The natural circulation of the gases will be induced in a chimney height at
least 6 meters and diameter of at least 40 centimeters, so that negative
pressure is sufficient to protect the operator from excess of fires or
dispersion of noxious gases;
10. Supplied with electrical control panel with thermo-magnetic protection and
command buttons; and,
11. Equipped with pyrometers meters/controller of thermocouple temperature with
chromium-aluminium, range 0-1200 Deg C (to observe the temperature of the first
and
Second chamber and also of the chimney)
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡ |
|
