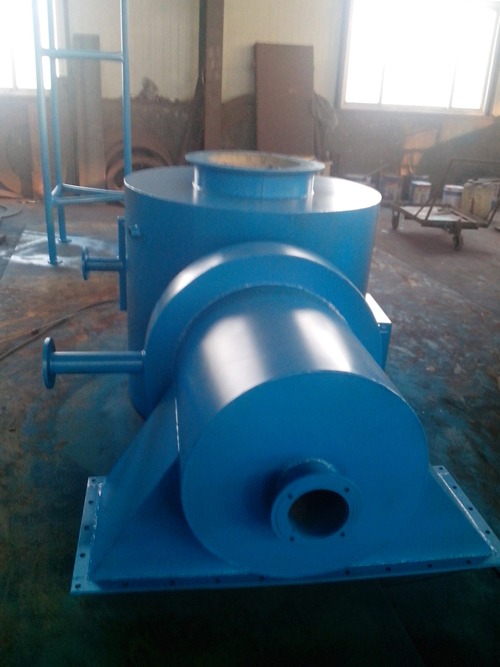

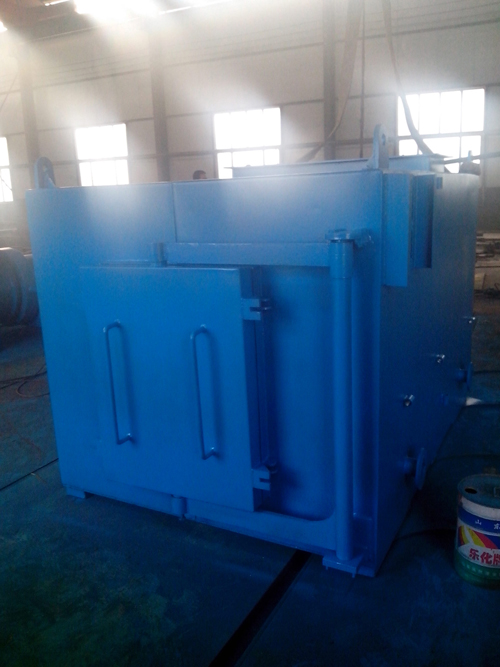

Medical Waste Incinerator
Treatment Capacity:150kgs per hour
|
¡¡ |
 |
|
 |
¡¡ |
All our incinerator use stainless
steel chimney, not steel.
All our incinerator have two
combustion chamber at least, not
single chamber.
All fuel burner from Italy made
with famous brand, best quality.
¡¡
|
Model |
YD-150 |
|
Burning Rate |
150 kgs/hour |
|
Feed Capacity |
300 kgs |
|
Primary Combustion Chamber |
1500 Liters |
|
Secondary Combustion Chamber |
500 Liters |
|
Mix Combustion Chamber |
Yes |
|
Smoke Filter Chamber |
Yes |
|
Feed Mode |
Manual |
|
Voltage |
220V/380V |
|
Power |
1.03Kw |
|
Fuel Type |
Diesel Oil/ Natural Gas/LPG |
|
Burner |
Italy Original |
|
Oil Consumption (Diesel Oil) |
17--36 kg/hour |
|
Gas Consumption (Natural Gas) |
11--36.7 m3/hour |
|
Internal Dimensions |
150 x 100 x 96cm (primary chamber) |
|
External Dimensions |
240 x 170 x 380cm (without chimney) |
|
Temperature Monitor |
Yes |
|
Oil Tank Capacity(if oil fuel) |
300 Liters |
|
Door Opening |
59 x 81cm |
|
Chimney Length |
10.0 Meters |
|
Chimney Type |
Stainless Steel |
|
Equipment Gross Weight |
7000 kgs |
|
Operation Technical Specifications |
|
Primary Chamber Temperature |
800¡æ--1000¡æ |
|
Secondary Chamber Temperature |
1000¡æ-1200¡æ |
|
Residency Time |
2.0 Sec. |
|
Burning Efficiency |
£¾98% |
|
Waste Lower Calorific Power |
3000Kcal |
¡¡
Waste chamber
Chamber capacity 300 kg
Chamber volume .54m³
Chamber size (outside) Width: 91cm, Height: 86cm Length: 152cm
Door opening 66 x 76 cm
Height to door 84 cm
Height to top of stack 5.4 m
Suggested slab size (L x W x Thickness) 1.8 m x 2.4 m x 10 cm
Burn rate: Approximately 45 kg/hr.
Stack:
2'-14" dia. (36 cm), 14 gauge (1.90 mm) aluminized steel, refractory lined
8'-12" dia. (30.5 cm), 16 gauge (1.52
Burners Diesel
Operation Manual timer
Electrical service Standard - 115 volt, 60 HZ, 20 amp
General Description:
Primary Chamber: Heavy-duty steel casing
High quality refractory lining and insulation
Large full size top load door and liquid retention sill
1 x diesel oil fired ignition burners operated on/off
Ash removal door
Chimney: Heavy-duty stainless steel casing
1.5m length
0.6m refractory lined stack
Control Panel: Control of 1 burner
Timer control 0-12 hours
Integral fan timer control
Temperature monitoring
Automatic Control
Cycle time set up
Ancillaries: Operating and maintenance manuals
Spares list
Ash Rake
Containerization: 20 foot shipping container with incinerator fitted
500 litre fuel tank
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡
¡¡ |
|
