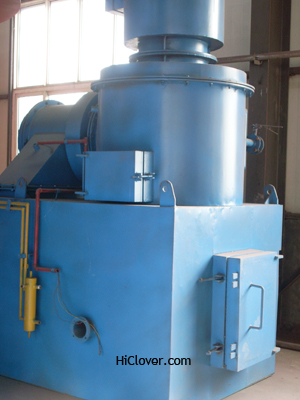

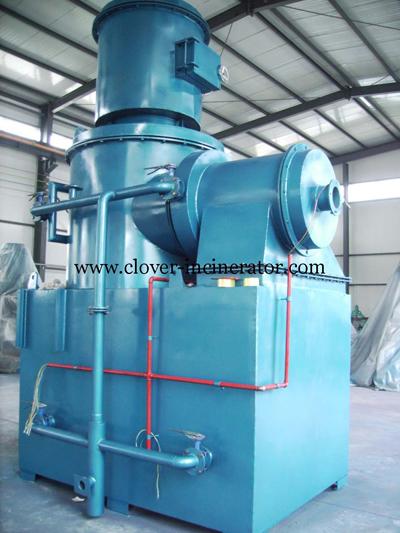

Medical Waste Incinerator YD-100
Items/Model |
YD-100 |
Burning Rate (kgs/Hour) |
100 kgs/Hr. |
Feed Capacity (kgs) |
200 kgs |
Equipment Weight |
5300 kgs |
Primary Chamber (Liters) |
1200 |
Secondary Chamber (Liters) |
500 |
External Dimensions (cm) |
220x180x360 |
Internal Dimensions (cm) |
130x100x90 |
Oil Tank(Liters) |
300 |
Door Opening (cm) |
55 x 80 |
Chimney (M) |
10 |
Chimney Type |
Stainless Steel |
Secondary Chamber |
YES |
Mix-Combustion Chamber |
YES |
Smoke Filter Chamber |
YES |
Combustion Fuel |
Oil/Gas |
Residency Time |
2.0 Sec. |
Temperature Monitoring |
YES |
1st. Chmaber Temperature |
800¡æ--1000¡æ |
2nd. Chmaber Temperature |
1000¡æ-1200¡æ |
Description Minimum Requirements
Design standard Multiple chamber incinerator to the design of EPA standards, Air
pollution control
Description of the Chimney Top mounted, self supporting
Incinerator performance 150kg/hr
Refuse Hospital waste and carcasses
Recommended Temperatures Minimum 1000⁰C
Dimensions:
Length
Width
Height
Extra width for burners
At least 3000mm
Loading door opening Minimum 700mm x 600mm
Hearth area 5.00square meters
Description or grate/hearth A full hearth supplied to prevent contaminated
liquids from flowing into the ash pit without being incinerated
Primary chamber volume At least 3 cubic meters
Mixing chamber volume At least 1 cubic meters
Settling chamber volume At least 3 cubic meters
Weight excluding chimney 15, 000kg at manufacture
Firing tools supplied Hoe, Poker and rake
Material of construction
Case ¨C 5mm mild steel.
Bracing ¨C Heavy angle and channel.
Hearth ¨C 1550⁰C castable general purpose high strength, high abrasion resistant
monolithic refractory concrete.
Ashing door ¨C High grade cast iron.
Loading door ¨C 5mm mild steel lined with 1550⁰C castable general purpose high
strength, high abrasion resistant monolithic refractory concrete.
Refractory concrete:
Alumina content of refractory
Refractory thickness
Minimum 49%
At least 127mm.
Insulation to walls 1000⁰C Castable insulation
Chimney stack:
Chimney
Height from base
5 mm mild steel
9 meters above ground level and clear the highest point of the building by not
less than 3 meters
At least 560mm
At least 750Kg
Barometric indicator, door operated draught limiter
Built-in forced heated air ducts, primary and secondary (intensifier)
Control panel ¨C Circuit breakers, main switch, timer, pilot lights, 2 set point
pyrometer and one set point pyrometer.
Electricity supply required 415 Volts Three phase.
Auxiliary fuel Electrically operated only
Emission Multiple chamber design with inbuilt emission control
Paint: Case and stack 400⁰C Heat Resistant Grey
Temperature of case 100⁰C
¡¡
¡¡ |
¡¡ |
¡¡ |
