CLOVER Incinerator

Call us on  0086-25-8461 0201  [email protected]

China Medical Incinerators /  Animal Cremation / Waste Incinerators

¡¡

¡¡

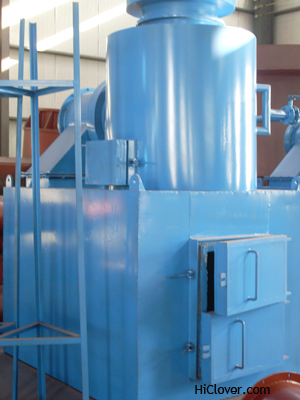

Model YD-100
 Burning Rate  100 kgs/hour
Feed Capacity 200 kgs
Paimary Combustion Chamber 1200 Liters
Secondary Combustion Chamber 500 Liters
Mix Combustion Chamber Yes
Smoke Filter Chamber Yes
Feed Mode Manual
Voltage 220V/380V
Power 0.9Kw
Fuel Type Diesel Oil/ Natural Gas/LPG
Burner Italy Original
Oil Consumption (Diesel Oil) 14--28 kg/hour
Gas Consumption (Natural Gas) 10--32.2 m3/hour
Internal Dimensions 130 x 100 x 90cm (paimary chamber)
External Dimensions 220 x 180 x 360cm (without chimney)
Temperature Monitor Yes
Oil Tank Capacity(if oil fuel) 300 Liters
Door Opening 55 x 80cm
Chimney Length 10.0 Meters
Chimney Type Stainless Steel
Equipment Gross Weight 4300 kgs
Operation Technical Specifications
Paimary Chamber Temperature 800¡æ--1000¡æ
Secondary Chamber Temperature 1000¡æ-1200¡æ
Residency Time 2.0 Sec.
Burning Efficiency £¾98%
Waste Lower Calorific Power 3000Kcal

MEDICAL WASTE INCINERATOR SPECIFICATIONS Capacity (4000 kg/day). The unit should have the following features:
* Automatic feeding
* Automatic ash / leftovers removal
* Flue gas filtration system.
* The technical & financial offer should include installation & testing and staff training.

***The offer should be itemized. IMPORTANT INFORMATION:
1 Emission standards : ( EU ) ¡ª
2 Waste type: Hazardous Medical Waste
3 Approximate moisture content: max. 30%
4 Glass content: max. 15%
5 Building Roof Height: 8 meters
6 Height of chimney above roof (required): at least 3 meters
7 Fuel to be used : No. 2 ( diesel ) ( Fuel specifications attached )
8 Power: 380 V, 3 phase

9 Space available inside the existing building: (Bidders should visit the building to choose the best location for installation coordinating with university engineers)
10 Waste filled in (max. 70X120 cm ) polyethylene bags ¨C

I would like to list the following points that are mentioned in the special conditions ( in Arabic), and are not mentioned in the technical specs:

1- The price of each of the following components should be listed separately, as the university might not order it,:
¨C Flue gas cleaning system. If you can send us two alternatives, dry scrubber and wet scrubber type, it would be great.
¨C Automatic feeder
¨C Automatic ash removal
¨C Continuous emissions monitoring and recording system

2- The delivery period is very important. The whole tender period is 120 days, including supply, transportation and installation of the unit???!!!

3- The offer should include separately a priced list of reco

¡¡ ¡¡
