Incinerator Items/Model |

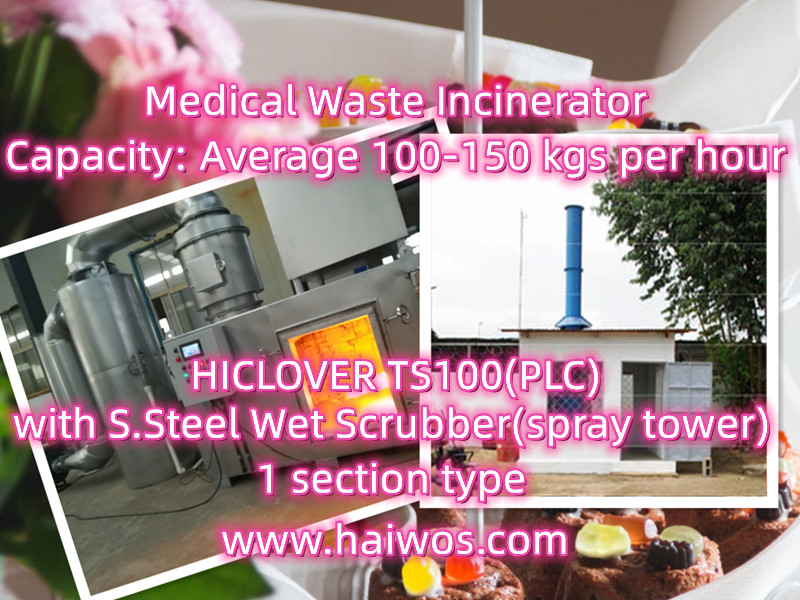

HICLOVER TS100(PLC)
|
|
Burn Rate (Average) |
100-150 kg/hour |
|
Feed Capacity(Average) |
200kg/feeding |
|
Control Mode |
PLC Automatic |
|
Primary Combustion Chamber |
1200Liters(1.2m3) |
|
Internal Dimensions |
120x100x100cm |
|
Secondary Chamber |
600L |
|
Smoke Filter Chamber |
Yes |
|
Feed Mode |
Manual |
|
Voltage |
220V |
|
Power |
0.7Kw |
|
Burner Type |
Italy Brand |
|
Oil Consumption (kg/hour) |
16 |
|
N.Gas Consumption (m3n/hour) |
*** |
|
Temperature Monitor |
Yes |
|
Temperature Thermometer |
Corundum Probe Tube, 1400℃Rate. |
|
Temperature Protection |
Yes |
|
Automatic Cooling |
Yes |
|
Automatic False Alarm |
Yes |
|
Automatic Protection Operator(APO) |
Yes |
|
System Testing Model |
Yes |
|
Time Setting |
Yes |
|
Progress Display Bar |
LCD Display |
|
Oil Tank |
200L |
|
Oil Tank Stand |
Yes |
|
Liquid level Display |
Yes |
|
Feeding Door |
70x70cm |
|
Chimney |
8Meter |
|
Chimney Type |
Stainless Steel 304 |
|
1st. Chamber Temperature |
800℃–1000℃ |
|
2nd. Chamber Temperature |
1000℃-1300℃ |
|
Residency Time |
2.0 Sec. |
|
Gross Weight |
6000kg |
|
External Dimensions |
260x150x180cm |
|
1st. Chamber Composition Hot Face |
Thickness: ≥115 mm |
|
55% of Al203 |
|
|
1750°C Grade |
|
|
2nd. Chamber Composition Hot Face |
Thickness: ≥115 mm |
|
75% of Al203 |
|
|
1790°C Grade |
|
|
Chamber Cold Face Material |
High Rate Refractory Ceramic Fiber |
|
Other Parts Hot Face Refractory |
Heavy Duty with steel fiber |
|
Burner operation |
Automatic On/Off |
|
Dry Scrubber |
Including |
|
Wet Scrubber |
Optional |
|
Top Loading Door |
Optional |
|
Paint for outside face |
250°C Grade |
|
Sealing Material |
Refractory Ceramic Fiber |
|
Upgrade Containerized Mobile Type |
Optional |
|
CE Certificate |
CE(2006/42/EC,2014/30/EU |
|
ISO Certificate |
ISO9001:2015 |
|
High-tech Enterprise Certificate |
Yes |
