Equipment Technical Specifications

Model

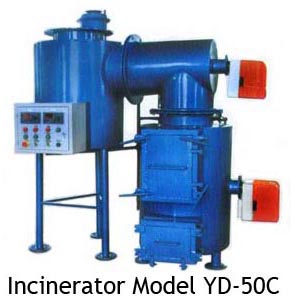

YD-50C

Feed Capacity

80-160 kgs per feed

Burning Rate

50 kgs per hour

Burning Time per Feed

1.5-3 hours

Voltage

220V

Power

0.7Kw

Fuel

Natural Gas or Diesel oil

Burner

Italy Burner

Feed Mode

Manual

Fuel consumption (Oil)

14.0-28.0 Kgs/Hour

Fuel consumption (Gas)

17.0-34.0m3/Hour

External Dimensions

180 x 160 x 200cm (mainbody)

Internal Dimensions

70 x 70 x 85cm(Primary Chamber)

Waste combustion chamber

400Liters

Post Combustion Chamber

140Liters

Oil Tank Capacity

150 Liters

Door Opening

45 x 55cm

Chimney

5.0M

Gross Weight

2200kgs

Chamber Material

Refractory Concrete

Max. Heat Value

280,000Kcal/Hr.

Operation Technical Specifications

Solid Chamber temperature

800⁰C -1000⁰C

Gas Chamber temperature

1000⁰C -1200⁰C

Chamber Anti-Rate

1350⁰C

Residency time

2.0 Sec.

Burning efficiency

＞98%

Waste Lower Calorific Power

3000Kcal
