50-100-150-200 Kgs per Hr Solid Waste Burner Version TS150 PLC 1570Liters Chamber
by hiclover
on August 16, 2022

Waste Burner Design TS150 PLC, Review

Construction is dual/double combustion chamber with 02 sets oil burner, batch load
incineration equipment. Waste feed chamber is 1570Liters (1.57m3, TS150 PLC).
Primary & Secondary combustion chambers and smoke filter chamber.
Batch load on the bottom of chamber. Incinerator PLC panel control suit for local operation.

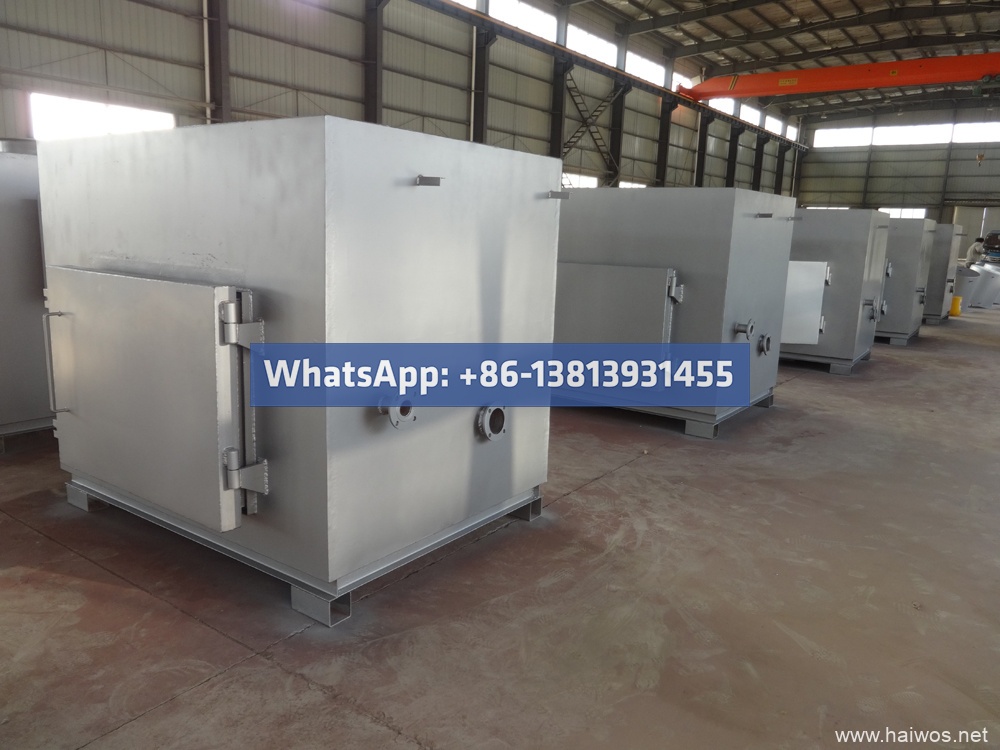

Primary Combustion Chamber:

※Main Feature:

— Double Combustion Chamber
— Double Italy Burner
— Smoke Filter included
–Burning Rate: 50-200kgs per hour optional
–Primary Combustion Chamber: 1.57M3(1570Liters)
— Incinerator Mainbody steel: 8mm thickness
— Paint for outside face: 800°C Rate
—Chamber Material: High Alumina Fire Brick Wall, 1750℃ Rate
— Idea for campsite average or below 600 people

This version is small-scale waste incineration tools for miniature waste outcome.

— Chimney: 10 Meters, Stainless steel

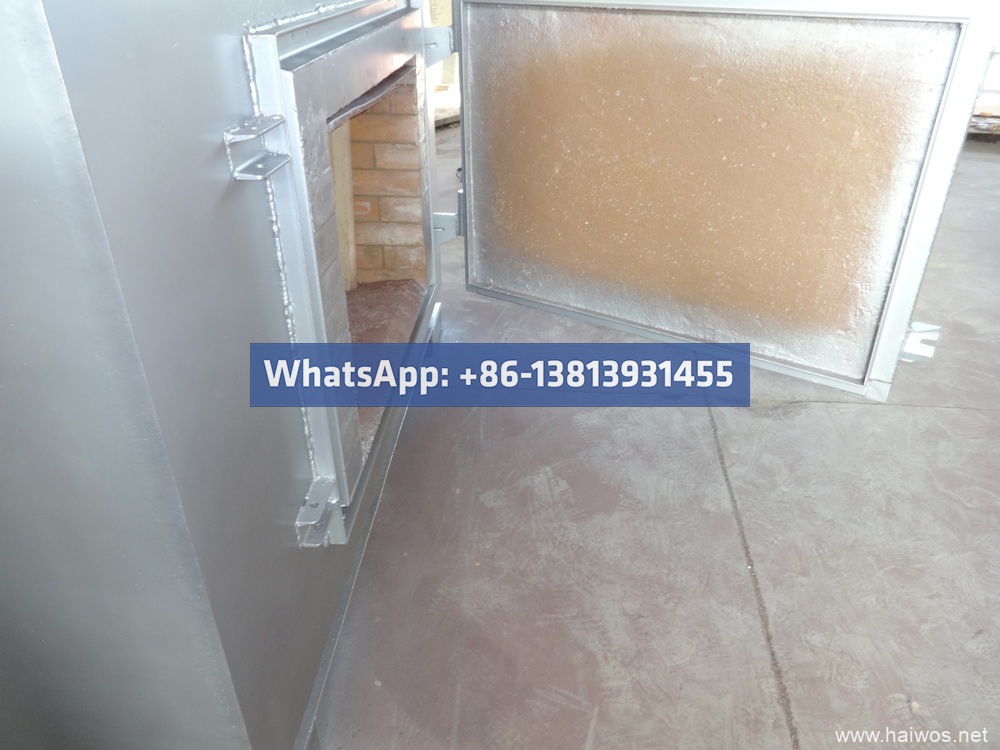

Feeding door primary chamber:

Items/Model

TS150( PLC)


Concept

Waste Incineration Therapy

Burn Rate

Average 150 kg/hour

*( 50/100/200kgs/ hour optional)

Feed Capability

Standard 750kg/feeding

Control Mode

PLC( Programmable Reasoning Controller Burner)

Main Body Steel

8mm density

Chamber Material

High Alumina Fire Brick Wall Surface, 1750 ℃ Cost

Paint for outdoors face

800 ° C Price

Burning Chamber

1570L

Internal Measurements

150x100x105cm

Added Chamber

750L

Smoke Filter Chamber

Yes

Feed Mode

Guidebook

Voltage

210/230V 50/60Hz

Power

0.9 Kw

Oil Usage (kg/hour)

Average 20.4-28.0( D.O)

Gas Usage (m3/hour)

***

Temperature Monitor

Digital Current

Temperature Level Defense

Yes

Oil Storage Tank

300L

Feed Door

80x60cm

Smokeshaft

10Meter

Smokeshaft Type

Stainless-steel

1st. Chamber Temperature

800 ℃—- -1000 ℃

second. Chamber Temperature Level

1000 ℃ -1200 ℃

Residency Time

2.0 Sec.

Gross Weight

8500kg

Outside Measurements

300x160x280cm( without smokeshaft)
