Nanjing Clover Medical Technology Co., Ltd.  is a leading waste incinerator manufacturer in China. All series included burning capacity 10kgs per hour, 30kgs per hour,50kgs per hour,100kgs per hour,150kgs per hour,300kgs per hour,500kgs per hour. Up to now, all models sale to all over the world and have good feedback from end-customer. The YD Model medical incinerator have multi-combustion chamber and basic dry scrubber (smoke filter chamber) with reasonable project budget. For the cleaner emission require, we accept custom made wet scrubber for incinerator and this will be also our next working by focusing on emission technical. - See more at: http://www.chinaclover.net/#sthash.8uiN87bM.dpuf

  Nanjing Clover Medical Technology Co., Ltd. is a leading waste incinerator manufacturer in China. All series included burning capacity 10kgs per hour, 30kgs per hour,50kgs per hour,100kgs per hour,150kgs per hour,300kgs per hour,500kgs per hour. Up to now, all models sale to all over the world and have good feedback from end-customer. The YD Model medical incinerator have multi-combustion chamber and basic dry scrubber (smoke filter chamber) with reasonable project budget. For the cleaner emission require, we accept custom made wet scrubber for incinerator and this will be also our next working by focusing on emission technical.

  We are well-known in waste incinerator field all over the world and can delivery products to anywhere in the world. We currently have incinerators located in many continents around the world.

  Clover are committed to improving our environment and are constantly developing new technologies to clean our environment.

 The past few months have been a very busy time for CLOVER. The outbreak of Ebola in West Africa has resulted in all of the Global aid organisations contacting CLOVER to support them in getting the necessary equipment to the effected regions.
containment

The United Nations, UNOPS and local agents are now in constant contact with CLOVER in their attempts to stop the potential of further contamination by destroying medical waste streams at the source.

Regular model incinerator for market with burning rate from 10kgs to 500kgs per hour and we always proposal customer send us their require details, like waste material, local site fuel and power supply, incinerator operation time, etc, so we can proposal right model or custom made with different structure or dimensions. CLOVER have a wide range of medical Incinerators that allow for small batches of 10kg up to an impressive 600kg per hour. Many years of research and development has made CLOVER a company that is globally renowned and respected and are the go to company for a diverse set of organisations when such problems arise. The quality of our China manufactured product is of the highest standard and the warranties reflect the performance and life cycle of our Incinerators. All of the organisations have shown great interest in the Innovative and high performing mobile model that gives both performance and mobility, we currently have a large number of this model on route to the region as we speak.

We are now talking to the individual countries about their ongoing requirements to support the process of this virus being contained and eventually eradicated. Our range of mobile incinerators are the ideal solution to enable mobile and instant waste management to areas that are restricted due to infrastructure and remoteness.
��

Items/Model YD-30 YD-50 YD-100 YD-150
Burning Rate (kgs/Hour) 30 kgs/Hr. 50 kgs/Hr. 100 kgs/Hr. 150 kgs/Hr.
Feed Capacity (kgs) 60 kgs 150 kgs 200 kgs 300 kgs
Equipment Weight 2300 kgs 4000 kgs 5300 kgs 7000 kgs
Primary Chamber (Liters) 360 900 1200 1500
Secondary Chamber (Liters) 200 200 500 500
External Dimensions (cm) 145x90x175 200x160x230 220x180x360 240x170x380
Internal Dimensions (cm) 100x60x60 120x90x85 130x100x90 150x100x96
Oil Tank(Liters) 200 300 300 300
Door Opening (cm) 48 x 60 62 x 80 55 x 80 59 x 81
Chimney (M) 5 5 10 10
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Secondary Chamber  YES YES YES YES
Mix-Combustion Chamber YES YES YES YES
Smoke Filter Chamber YES YES YES YES
Combustion Fuel Oil/Gas Oil/Gas Oil/Gas Oil/Gas
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Temperature Monitoring YES YES YES YES
1st. Chmaber Temperature 800��--1000�� 800��--1000�� 800��--1000�� 800��--1000��
2nd. Chmaber Temperature 1000��-1200�� 1000��-1200�� 1000��-1200�� 1000��-1200��


CLOVER will continue to strive on many fronts to ensure that our product range is the best in the Incinerator market and part of that process is the ability to service markets and disaster areas in the quickest possible time. This we will do with the utmost priority in servicing all of the Aid organisations and government agencies to win the battle against Ebola.

We urge everyone who can assist to do their utmost to help and support the people of West Africa, in the belief of bringing this problem to an end, Join us on our Social Media platforms to support the Ebola effort.





��

   A large stock of incinerators & parts

��
�� �� ��
��

��
��

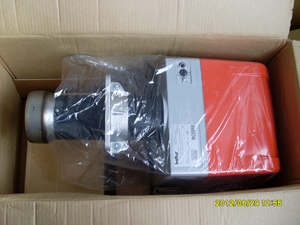

Incinerator burners in stock

��
�� �� ��
��

��
��

Waste Incinerator User Guide

��
�� �� ��
��

��


Waste Incinerator Catalogue



��

��

��

��

��

��


�� �� ��
