CLOVER Incinerator
Call us on 0086-25-8461 0201
[email protected]
China Medical Incinerators /
Animal Cremation / Waste Incinerators
|
Model |

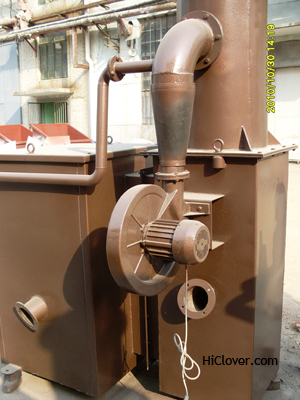

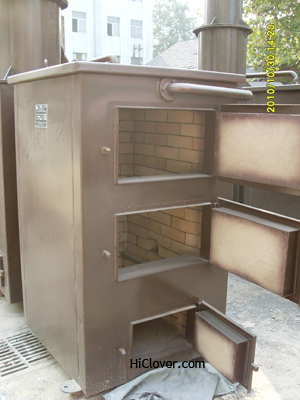

YZ-50 |
|
Capacity(Kgs/Hour) |
About
50 |
|
Applicable Sick Bed(Beds) |
500 |
|
Voltage(V) |
220 |
|
Power(Kw) |
1.3 |
|
Oil |
Diesel
Oil(light Diesel oil beneath
10#) |
|
Burner |
Baltur,
Italy Original |
|
Feed
Mode |
Manual |
|
Prohibit Waste |
Incombustible and explosive materials not allowed in |
|
Chamber
thickness(Firebrick) (mm) |
135 |
|
Steel
Thickness(mm) |
4 |
|
Gross
Weight(Kgs) |
2400 |
|
Package
Material |
Wooden
Carton |
|
Package
Size(mm) |
2200(L)
x 1500(W) x 2550(H) |
|
Chimney |
Length:
6.4M, Diameter:250mm |
|
Oil
Tank Capacity(Kgs) |
63.75 |
|
Fuel
consumption: |
Primary
Burner: 2.7-6.3Kgs/Hour
Secondary
Burner: 2.7-6.3Kgs/Hour |
|
Solid combustion
chamber((Primary& Secondary, M3) |
0.45 |
|
Gas
Combustion Chamber(M3) |
0.13 |
|
Solid
Chamber temperature(0C) |
800-1000 |
|
Gas
Chamber temperature(0C) |
1000-1200 |
|
Burning efficiency |
＞98% |
|
|
|
