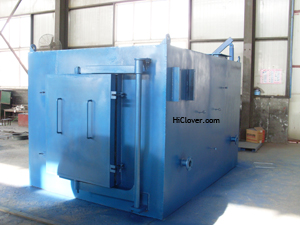

Medical Waste Incinerator YD-500
Items/Model |
YD-500 |
Burning Rate (kgs/Hour) |
500 kgs/Hr. |
Feed Capacity (kgs) |
800 kgs |
Equipment Weight |
13000 kgs |
Primary Chamber (Liters) |
4000 |
Secondary Chamber (Liters) |
1500 |
External Dimensions (cm) |
320x220x460 |
Internal Dimensions (cm) |
257x147x108 |
Oil Tank(Liters) |
500 |
Door Opening (cm) |
108 x 128 |
Chimney (M) |
14 |
Chimney Type |
Stainless Steel |
Secondary Chamber |
YES |
Mix-Combustion Chamber |
YES |
Smoke Filter Chamber |
YES |
Combustion Fuel |
Oil/Gas |
Residency Time |
2.0 Sec. |
Temperature Monitoring |
YES |
1st. Chmaber Temperature |
800¡æ--1000¡æ |
2nd. Chmaber Temperature |
1000¡æ-1200¡æ |
¡¡
The incinerator must be designated for
the destruction of all types of waste produced by the Center for Health (waste
type hospital, clinic, medical laboratory for destructive capacity of 30kg / h)
.
Pyrolytic gasification combustion control shall:
Prevent development of black smoke and dust formation tine loading of waste;
Provide regular and complete combustion of the waste;
Provide controlled guaranteeing the absence of color, cloud of smoke or burning
odor;
Allow limited fuel consumption
The incinerator with pyrolytic combustion must have:
Combustor:
¨C Chamber strong steel support legs sheet;
¨C The lining is made of refractory bricks and a thermal insulation ensuring a
minimum temperature of the sheet;
¨C The sole combustion is composed of a refractory lining specially designed to
meet the thermal, mechanical and corrosive liquid waste requirements and molten
glass;
¨C The dimensions of the floor are equipped laterally primary air nozzles that
fuel combustion;
¨C The hearth is equipped with a stirring system of waste combustion is
controlled switch;
¨C The recovery operation of the ashes will take place once a day line before
starting the day¡¯s operation.

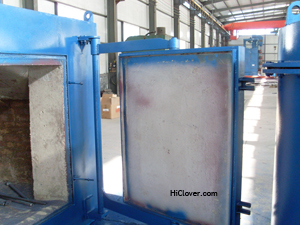

Composition of the refractory lining:
* Insulation:
¨C Operating temperature: 1000 ¡ã C max
¨C Nature: Calcium Silicate
¨C Thickness: 80 mm
* Refractory:
¨C Operating temperature: 1650 ¡ã C max
¨C Nature: Refractory bricks with 42 alumina
¨C Thickness: 110mm
Burner combustion:
¨C The combustion chamber is equipped with a burner to line to ensure correct
temperature for the total destruction of waste combustion;
¨C Automatic monobloc burner and flame plunge equipped with an electronic
ignition system and permanent ventilation.
Air fan:
¨C A primary air and secondary air fan provides the necessary oxygen delivery
¨C There is a motor operated valve that controls the flow according to the
combustion.
¨C The pressure of the fan is 500 mm CE to pierce the mass of waste during
combustion.

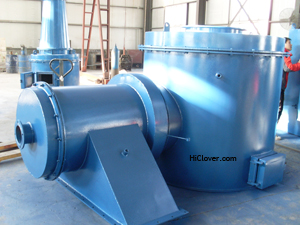

Post ¨C combustion chamber:
¨C Treat the gas has a minimum temperature of 1100 ¡ã C with a minimum residence
time of two seconds the afterburner is to;
¨C A secondary air injection is expected and provides perfect oxygen content;
¨C The burner ensures a minimum temperature of 1100 ¡ã C continuous;
¨C The design of this burner is similar to combustion burners;
¨C The afterburner is equipped with access doors in order to ensure regular
cleaning of dust;
¨C The afterburner is lined with high thermal insulation with a thickness of 150
mm
Cabinet, control and regulation:
¨C The entire installation will conform to European standards (EU)
¨C The electrical power is 220V 50Hz single phase.
¨C Regulators of temperature with digital display:
1 to regulate the temperature of the combustion chamber
1 for controlling the temperature of the afterburner
The manual controls are provided on each item.
PRODUCT DIMENSIONS
Description Dimensions
Destructive capacity 30 Kg / hour
Operation 12h/24, 6d / 7
Fuel diesel oil
Chimney Height: 5m, Diameter: 280mm
Volume of combustion
chamber Combustion: 0.3 m3
Post combustion: 0.2m3
Mixed combustion chamber: 0.3m3
` TEMPERATURES:
. Combustion
. Afterburner
900 ¡ã C
1100 ¡ã C
POWER BURNER
Combustion
Afterburner
0.11 KW
0.11 KW0
Fan power 0.37 kW
¡¡ |
¡¡ |
¡¡ |
