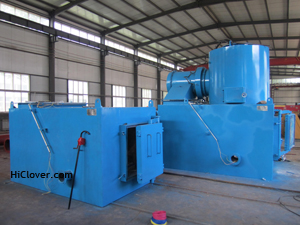

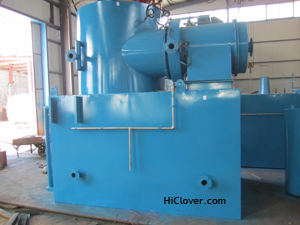

Medical Waste Incinerator YD-300
|
Items/Model |
YD-300 |
|
Burning Rate (kgs/Hour) |
300 kgs/Hr. |
|
Feed Capacity (kgs) |
500 kgs |
|
Equipment Weight |
8300 kgs |
|
Primary Chamber (Liters) |
2400 |
|
Secondary Chamber (Liters) |
1200 |
|
External Dimensions (cm) |
260x220x420 |
|
Internal Dimensions (cm) |
220x110x100 |
|
Oil Tank(Liters) |
500 |
|
Door Opening (cm) |
90 x 110 |
|
Chimney (M) |
10 |
|
Chimney Type |
Stainless Steel |
|
Secondary Chamber |
YES |
|
Mix-Combustion Chamber |
YES |
|
Smoke Filter Chamber |
YES |
|
Combustion Fuel |
Oil/Gas |
|
Residency Time |
2.0 Sec. |
|
Temperature Monitoring |
YES |
|
1st. Chmaber Temperature |
800℃--1000℃ |
|
2nd. Chmaber Temperature |
1000℃-1200℃ |
Capacity incinerator medical waste to
high combustion temperature
With a smokeless device to protect the environment and with two combustion
chambers equipped with gas burners or oil
-incinerator to burn large volume pieces of 70 cm
deviation: Automatic Control System
-destructive capacity from 20 to 30 kgs
First-room / Temperature = 900 ° C combustion
2nd bedroom / Temperature = 1200 ° c afterburner
-burner = 116Kw
|
|
|
